PRODUCT CODE: FH01-3P

Description:

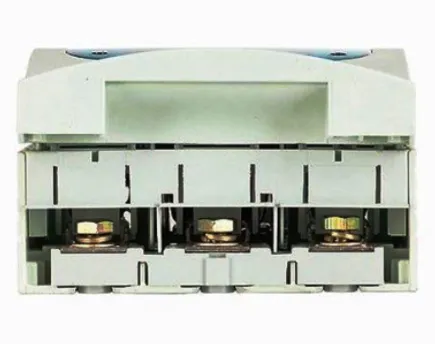

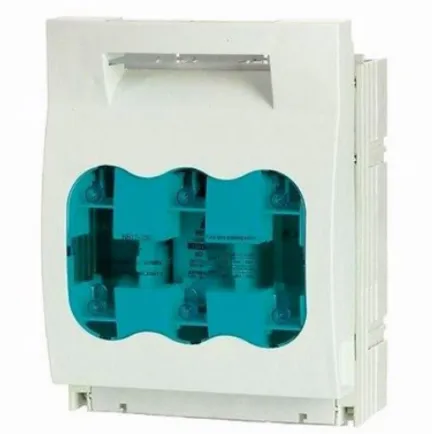

A high current 3 pole fuse link holder ideal for use in high current applications such as solar, battery and inverter installations.

The fuse holder supports up to 3 x fuse links of up to 250A each, sold separately.

Features a pull-down knife switch disconnection handle so the system can be shut down quickly if the need arises.

Suits NT1 size low voltage high rupture capacity (HRC) fuse links.

Specifications:

• Rated insulation voltage (AC): 690V
• Rated insulation voltage (DC): 250V
• Current (max): 250A (per circuit)
• Dimensions: 185mm (W) x 245mm (H) x 110mm (D)

Electrical Safety:

Some electrical knowledge is assumed. If you are not familiar with DC high current circuits, you should not attempt to wire up any of these components. Employ a CEC certified off-grid solar installer to install these products for you. Energy Connections takes no responsibility for damage caused to equipment or persons as a result of improper installation with these, or any devices sold by us.
